My Projects

Model MX1

2 layer board of 0.71 x 0.71 inches (18.0 x 18.0 mm)
Uploaded: January 2nd 2022
Shared: January 2nd 2022
Total Price: $2.50

This PCB is licensed under the GNU General Public License v3.0: https://www.gnu.org/licenses/gpl-3.0.en.html

This PCB is licensed under the GNU General Public License v3.0: https://www.gnu.org/licenses/gpl-3.0.en.html

Embeddable link to order this shared Project

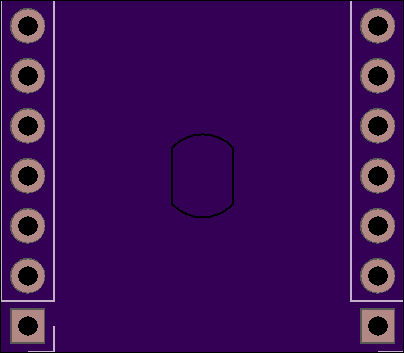

Gateron KS15 Optical Switch.kicad_pcb

2 layer board of 0.81 x 0.71 inches (20.5 x 18.0 mm)
Uploaded: August 8th 2020
Shared: August 8th 2020
Total Price: $2.85

Embeddable link to order this shared Project

DIYB0XX Power Strip

2 layer board of 1.40 x 0.60 inches (35.6 x 15.3 mm)
Uploaded: January 31st 2020
Shared: January 31st 2020
Total Price: $4.20

Board for connecting common power and data points. 5V and GND are usually the only two needed, but if you have an internal GCC to USB adapter for example, yo…

Board for connecting common power and data points. 5V and GND are usually the only two needed, but if you have an internal GCC to USB adapter for example, yo…

Embeddable link to order this shared Project
