DogboneVFD Wristwatch 1.1

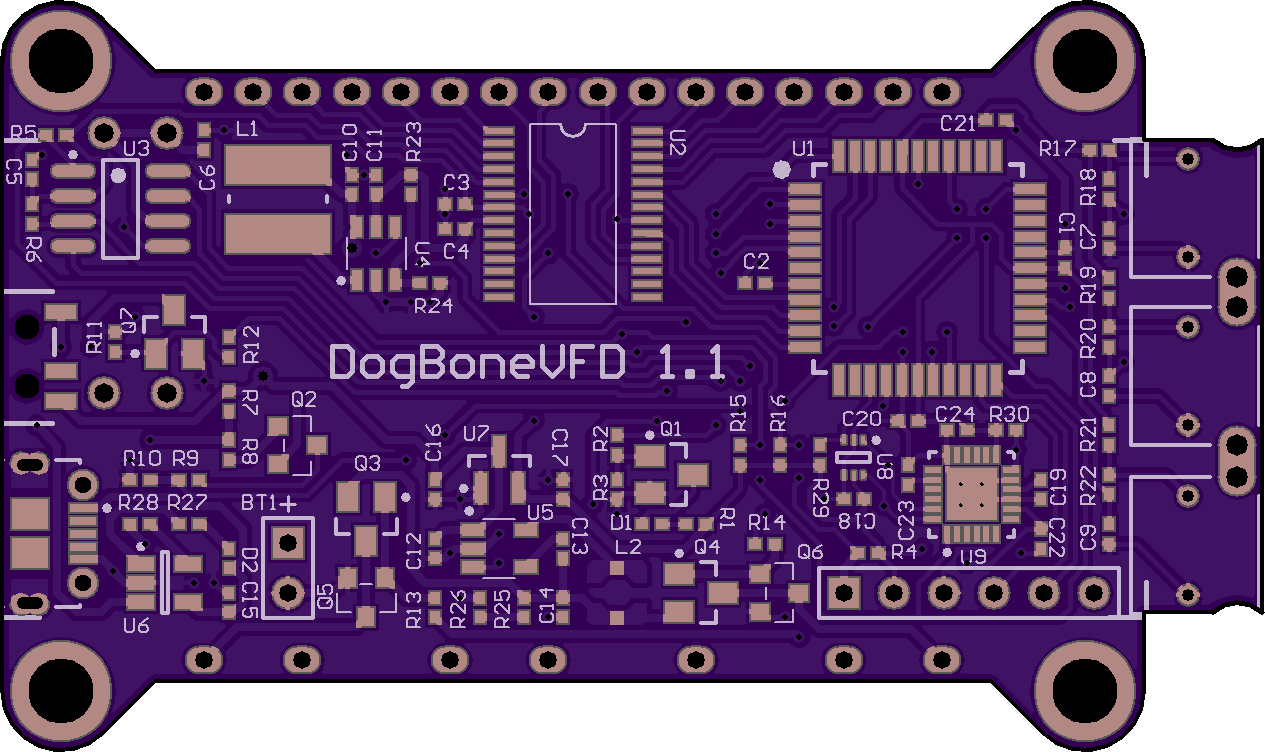

Top
Bottom

2 layer board of 2.53 x 1.51 inches (64.3 x 38.2 mm)
Uploaded: September 29, 2018
Shared: October 01, 2018
Total Price: $19.00

Second revision of my wristwatch based on the IVL2-7/5. Original version can be seen at https://callumnunesvaz.wordpress.com/portfolio/dogbonevfd/

Second revision of my wristwatch based on the IVL2-7/5. Original version can be seen at https://callumnunesvaz.wordpress.com/portfolio/dogbonevfd/

Top
Bottom
