Saleae Logic 24MHz 8CH Breakout

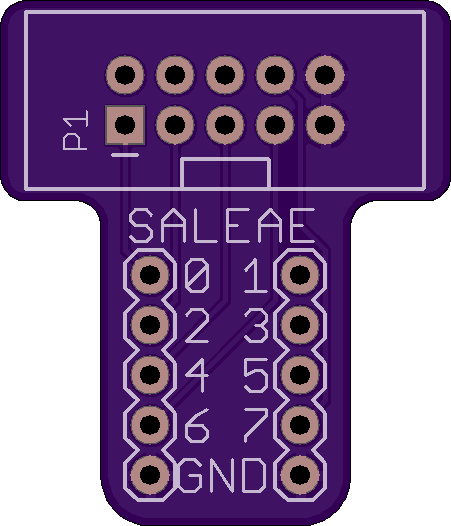

Top
Bottom

2 layer board of 0.90 x 1.05 inches (22.9 x 26.7 mm)
Uploaded: December 17, 2016
Shared: January 17, 2017
Total Price: $4.70

Top
Bottom
  • Actions

      Ordering shared project

      Hey there! Before ordering, make sure you have all the info you need to complete and use this design. This usually means a component list, and sometimes additional information such as assembly notes, source code, or usage guides.
      Since this is a project designed by a community member, it may contain design errors that prevent it from working as intended. OSH Park cannot place any guarantees about the functionality or correctness of the design.
      Order Board
    • Order Board
    • Download
    • Permalink
    • Embed link
Embeddable link to order this shared Project

TPS6120x_breakout

Top
Bottom

2 layer board of 0.40 x 0.50 inches (10.2 x 12.7 mm)
Uploaded: September 07, 2016
Shared: October 18, 2016
Total Price: $1.00

L1: 2.2uH 0603
C1: 10uF 0603
C2: 0.1uF 0603
C3: 10uF 0603 (NOTE: may need more capacitance to filter output)
U1:
- TPS61200DRC (adjustable output)
- TPS61201DRC (fixed 3.3v output)
- TPS61202DRC (fixed 5v output)

TPS61200 requires external resistors

[TPS6120x datashe…
