Sega Nomad TR201 Replacement

2 layer board of 0.27 x 0.31 inches (6.9 x 7.9 mm)
Uploaded: March 24th 2024
Shared: March 24th 2024
Total Price: $0.40

This is a simple replacement, remove the old TR201, assemble this pcb and parts, put it in place and solder the 3 castelations and 1 through hole plated via.

Q1 - New PNP Transistor - FMMT718TA D1 - New Schottky Diode - DFLS120L-7

This is a simple replacement, remove the old TR201, assemble this pcb and parts, put it in place and solder the 3 castelations and 1 through hole plated via.

Q1 - New PNP Transistor - FMMT718TA D1 - New Schottky Diode - DFLS120L-7

Embeddable link to order this shared Project

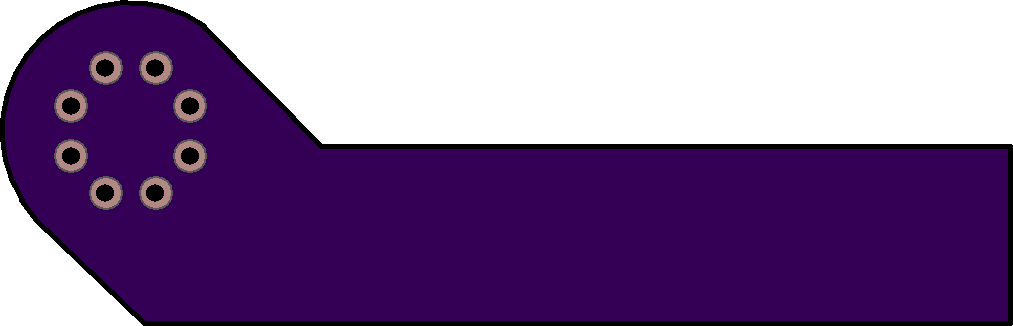

Turbo Express Tuner Port Flex Cable

2 layer board of 2.03 x 0.65 inches (51.5 x 16.5 mm)
Uploaded: June 23rd 2020
Shared: June 23rd 2020
Total Price: $6.60

This is a replacement flex cable for the Turbo Express and PC Engine GT flex cable that goes from the mainboard to the 8 pin DIN for the Tuner.

This is a replacement flex cable for the Turbo Express and PC Engine GT flex cable that goes from the mainboard to the 8 pin DIN for the Tuner.
