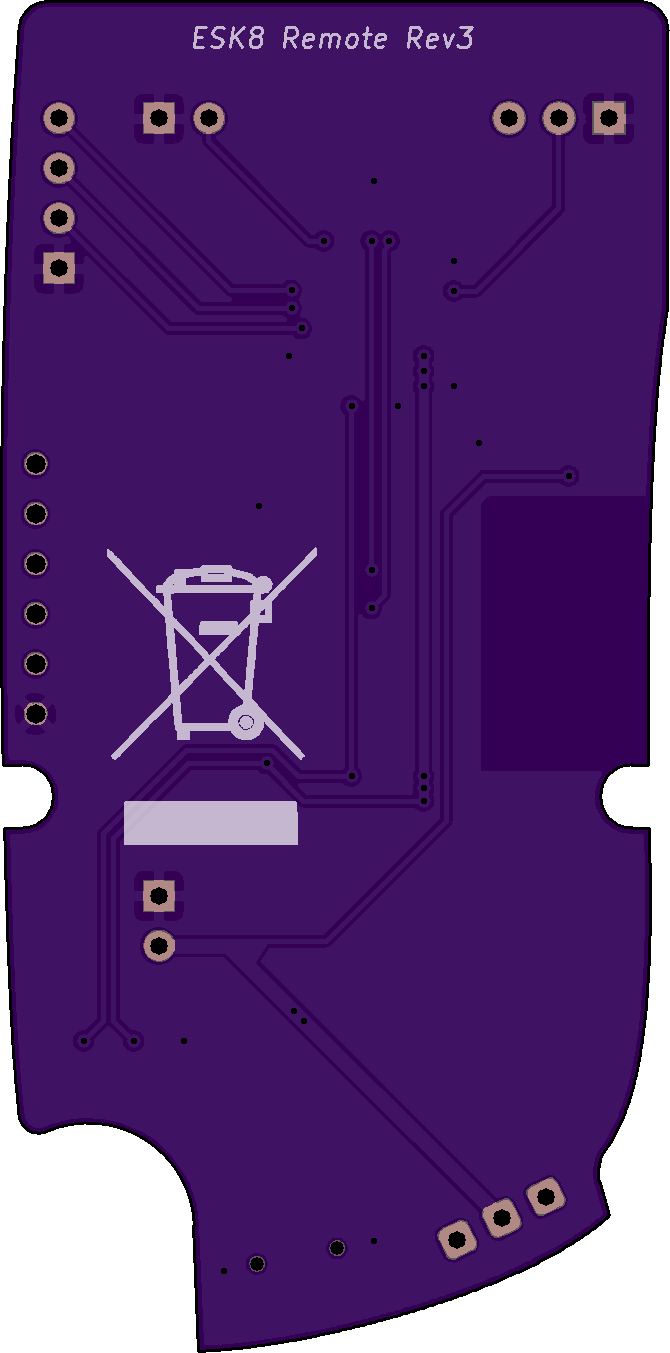

ESK8 remote rev 3

2 layer board of 1.34 x 2.71 inches (34.0 x 68.7 mm)
Uploaded: June 3rd 2019
Shared: June 3rd 2019
Total Price: $18.10

ESK8 remote rev 3

ESK8 remote rev 3

Embeddable link to order this shared Project

FPV Video and Audio PCB / PDB

2 layer board of 1.48 x 0.91 inches (37.6 x 23.1 mm)
Uploaded: August 12th 2015
Shared: August 12th 2015
Total Price: $6.70

A little PCB to connect a camera and a video TX with an optional microphone to be used on FPV-model-planes or copters. The PDB includes power filtering for a clean supply to the video TX as well as to the camera.

The supply voltage to the camera and the video transmitter can be 5V or equal to …

Show full description

A little PCB to connect a camera and a video TX with an optional microphone to be used on FPV-model-planes or copters. The PDB includes power filtering for a clean supply to the video TX as well as to the camera.

The supply voltage to the camera and the video transmitter can be 5V or equal to …

Show full description

Embeddable link to order this shared Project

FPV Video PCB / PDB

2 layer board of 1.19 x 0.91 inches (30.1 x 23.1 mm)
Uploaded: August 8th 2015
Shared: August 8th 2015
Total Price: $5.35

A little PCB designed to provide a neat FPV PDB. The PDB includes power filtering for a clean supply to the video TX as well as to the camera.

BOM:

  • L101 - 100uH 0.62A (WE-PD SMD 7332)
  • C101 - 0.1uF (SMD 0603)
  • C102, C103 - min 100uF, min 20V (electrolytic cap SMD 8x10mm)
  • U…

Show full description

A little PCB designed to provide a neat FPV PDB. The PDB includes power filtering for a clean supply to the video TX as well as to the camera.

BOM:

  • L101 - 100uH 0.62A (WE-PD SMD 7332)
  • C101 - 0.1uF (SMD 0603)
  • C102, C103 - min 100uF, min 20V (electrolytic cap SMD 8x10mm)
  • U…

Show full description

Embeddable link to order this shared Project

CopterAlarm v1.1

2 layer board of 1.47 x 0.61 inches (37.3 x 15.6 mm)
Uploaded: June 19th 2015
Shared: June 19th 2015
Total Price: $4.50

An audible alarm that goes off when the RX send no signal any longer (on disconnect or failsafe). Connects to the batteries balancing port.

An audible alarm that goes off when the RX send no signal any longer (on disconnect or failsafe). Connects to the batteries balancing port.

Embeddable link to order this shared Project

Signal Inverter (e.g. for S.Bus)

2 layer board of 0.95 x 0.73 inches (24.1 x 18.6 mm)
Uploaded: December 17th 2014
Shared: March 9th 2015
Total Price: $3.45

Signal Inverter (panelized, 3 boards) to be used for example for S.Bus to Naze32 or any other logical signal that needs to be inverted.

BOM

  • 2x 1kΩ resistor [0603]
  • 1x NPN transistor [SOT23] e.g. N2222A

Signal Inverter (panelized, 3 boards) to be used for example for S.Bus to Naze32 or any other logical signal that needs to be inverted.

BOM

  • 2x 1kΩ resistor [0603]
  • 1x NPN transistor [SOT23] e.g. N2222A
